the breif instroduction of 50kw Crac Precision Air Conditiner:
System Selection
Air Cooled • Refrigeration system can "split" between indoor air conditioner and outdoor aircooled heat rejection unit or packaged with both evaporator and condenser outside. • Compressors can be located in the indoor or outdoor equipment. • Field installed refrigerant pipelines (two per compressor or circuit) may interconnect indoor and outdoor units. Packaged units are provided with all refrigerant pipelines installed and tested. • For split systems, refrigerant piping design is critical. The design must address pressure losses, refrigerant velocities, oil return, and traps. • Excellent for multiple units and expanding installations. Packaged systems are selfcontained, stand-alone modules.
the specification of 50kw Crac Precision Air Conditiner:
| 모델 번호. | JHF58 | |||
| Unit performance | Total Cooling capacity | kW | 58 | |
| Useful cooling capacity | kW | 52 | ||
| 전기 가열 용량 | kW | 18 | ||
| 냉각 소비 전력 | kW | 31 | ||
| Air flow | m3/h | 15000 m3 / h | ||
| External static pressure | 아빠 | 150 | ||
| 핏터 | G4 | |||
| 전원 공급 장치 | 300v, 3상, 50hz | |||
| Refrigerant | R410a | |||
| Indoor unit | Fan | 팬 웨이 | 위 또는 아래 | |
| 风机个数 | 2 | |||
| 모터 파워 | kW | 5.5 | ||
| 가습 | 가습 | kg/h | 8 | |
| 힘 | kW | 6 | ||
| 치수 | mm | 1980년 2100년 890mm | ||
| Outdoor unit | 모델 번호. | SW20 | ||
| Compressor | 유형 | 밀폐형 스크롤 압축기 | ||
| consumption power | kW | 14KW | ||
| 콘덴서 유형 | 알루미늄 핀이 있는 동관 | |||
| 팬 모터 전원 | kW | 0.92 | ||
| 기류 | 25500 m3 / h | |||
| 최대 작동 전류 | A | 6.5 | ||
| 전원 공급 장치 | 230/1/50 | |||
| 연결 튜브 | 가스관(mm) | Φ28 | ||
| 수량 | 2 | |||
| 액체관(mm) | Φ15.88 | |||
| 수량 | 2 | |||
| 치수 | mm | 200011001200mm; |

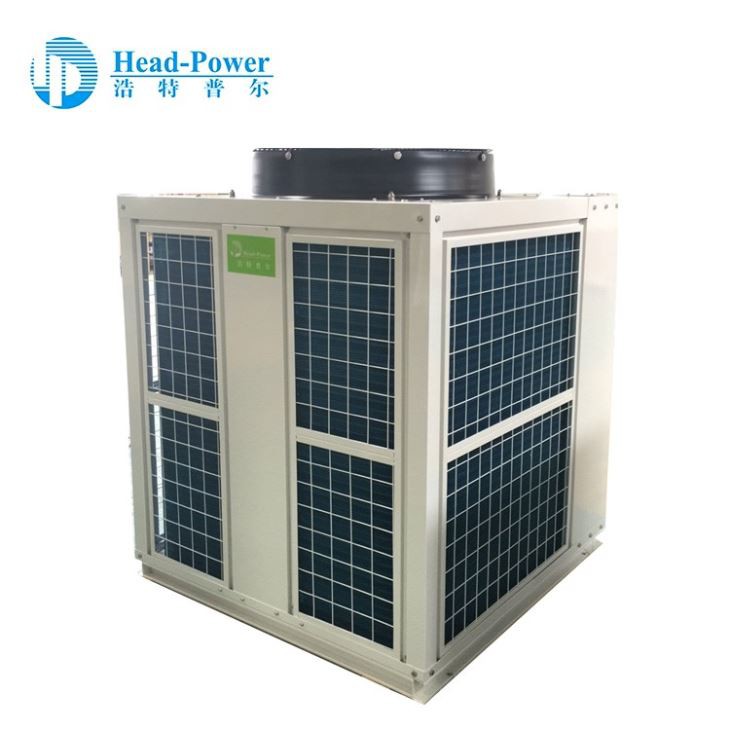

the product details of 50kw Crac Precision Air Conditiner
50kw Crac Precision Air Conditiner maintenance and repair
Correct operation and daily maintenance and repair, only only can extend unit's lifetime, but also can highly improve the efficiency and reduce energy consumption. It is suggested that it is operated, managed and maintained by professional technical workers. It also requires checking the unit periodically and judging whether the unit runs in normal condition. If something wrong happens, please handle in time, and record monthly, seasonal and annual maintenance data, which is convenient for further faults in the further.
1). ensure the ground-line wiring symbol and wiring column in the electric box are tightly connected with ground;
2). monthly check the power supply and con compressor's phase voltage;
삼). 장치를 시작하기 전에 압축기가 전기 난방으로 전환되는지{1}}확인하십시오.
4). if no emergency happens, don't cut off the total power supply to stop the unit. When faults alarms, firstly press the stop button, then check the faults reason; before cleaning up the faults, don't start the unit;
5). periodically check unit's running status, check system's highlow-pressure and oil level are normal or not. If something wrong happens, handle them in time;
6). periodically check the oil pressure difference of compressor oil, if it is larger than 0.3kgf/cm2, 배출하고 청소하십시오. 동시에 오일 팬 아래에 약간의 불순물을 청소하십시오. (완전한{0}}밀폐형 압축기에만 해당)
